Product Information

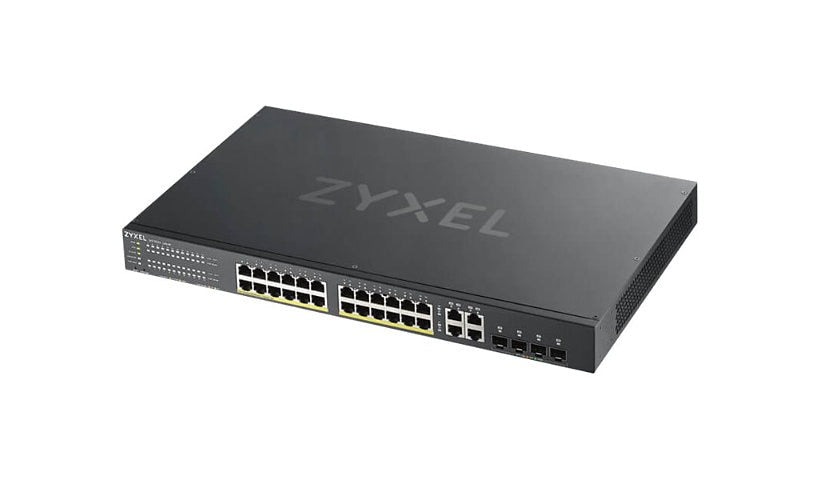

Zyxel's GS1920-24HPv2 is a smart managed rack switch with 24 Gigabit PoE+ ports at up to 30 W and four combo Gigabit RJ-45/SFP ports. It has a 375 W PoE budget, 56 Gbps of switching capacity, cloud management and features such as 802.1x and ARP inspection.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x combo Gigabit RJ-45/SFP ports
- 375 W PoE budget
- 56 Gbps switching, 42 Mpps
- Smart managed, cloud option
- 802.1x, ARP inspection, DHCP snooping
Product Information
Brand: ZyXEL
Manufacturer: Zyxel USA
Product Line: Zyxel
Model: GS1920-24HPv2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: IGMP, IGMPv2, IGMPv3
Authentication Method: RADIUS, TACACS+
Encryption: SSL
Performance: Forwarding rate: 42 Mpps, Switching capacity: 56 Gbps
Capacity: QoS hardware queues per port: 8
MAC Address Table Size: 16K entries
Features: 1.5MB packet buffer, 802.1x authentication, ARP inspection, Broadcast Storm Control, Class of Service (CoS), Cloud managed, CPU protection, DHCP client, DHCP relay, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, Dual firmware images, Duplicated Address Detection, Dynamic VLAN Support (GVRP), ErrDisable Recovery, Firmware upgradable, Flow control, Guest VLAN, IGMP filtering, IGMP proxy, IGMP snooping, IGMP throttling, Internet Control Message Protocol (ICMP), IP address filtering, IP source guard, IPv6 support, Loop Guard, MAC address filtering, MAC based VLAN, MAC freeze, Management Information Base (MIB), MLD snooping, MRSTP, Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Port isolation, Port mirroring, Port Security, Port-based VLAN, Private VLAN, Protocol-based VLANs support, Quality of Service (QoS), RADIUS support, Rapid Spanning Tree Protocol (RSTP) support, SNMP trap, Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Unicast Storm Control, Unknown Storm Control, VLAN filtering, VLAN support, VLAN Tagging, Voice VLAN, Weighted Fair Queuing (WFQ), Weighted Round Robin (WRR), ZyXEL iStacking Technology
Smart: Yes
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): Combo Gigabit SFP
Ports (3rd) Quantity: 4
Interface Provided: 24 x 1000Base-T RJ-45 PoE+ - 30 W, 4 x 1000Base-T RJ-45, 4 x 1000Base-X SFP
Power Over Ethernet (PoE): PoE+
QSFP Slots: 10/100/1000
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 463.5 watt
PoE Budget: 375 watt
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 32 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 95% (non-condensing)
MTBF: 638,691 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 10.6 inch
Weight: 8.38 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: BSMI, EMC Class A, FCC Part 15 A, LVD, RoHS
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
