Product Information

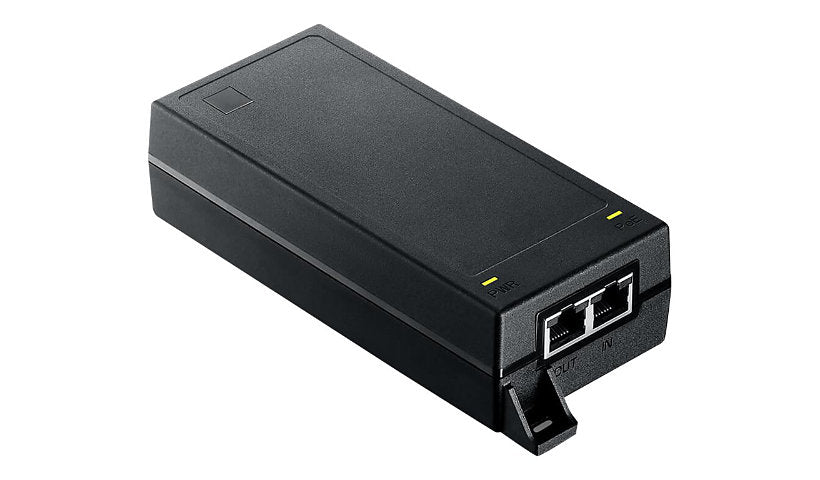

The Zyxel PoE12-60W is a single port 802.3bt injector that delivers up to 60 W along with data at up to 5 Gbps. It runs on 100 to 240 V AC, can be wall mounted and is listed for the Zyxel WAX650S access point.
Key Features
- 1 x 5G RJ-45 PoE++ output
- Up to 60 W, IEEE 802.3bt
- AC 100-240 V input
- Wall mountable
- For Zyxel WAX650S and other PoE devices
Product Information
Brand: ZyXEL
Manufacturer: Zyxel USA
Product Line: Zyxel
Model: PoE12-60W
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: Black
Network and Communication
Features: Wall Mountable
Connectivity
Interface Provided: 1 x 5 Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE++
Output Connector Quantity: 1
Power
Required Voltage: AC 100 - 240 volt
Frequency: 50 - 60 hertz
Power Output Connectors Details: 1 x RJ-45
Power Provided: 60 watt
Form Factor (Power Device): External
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Dimensions and Weight
Height: 1.5 inch
Width: 5.5 inch
Depth: 2.6 inch
Weight: 9.81 ounce
Included Items
Cables: Power cable - external
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u
Compliant Standards: FCC, Plug and Play, RoHS
