Product Information

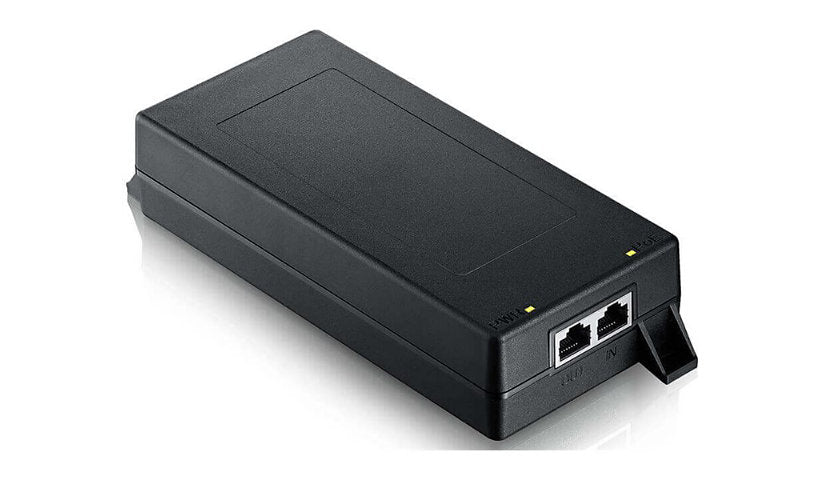

Zyxel's PoE12-90W is a single port 802.3bt injector that delivers up to 90 W with data at 1, 2.5, 5 or 10 Gbps. It runs on 100 to 240 V AC.
Key Features
- 1 x 1/2.5/5/10G RJ-45 PoE++ output
- Up to 90 W, IEEE 802.3bt
- AC 100-240 V input
- Single port injector
Product Information
Brand: ZyXEL
Manufacturer: Zyxel USA
Product Line: Zyxel PoE
Model: 12
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: Black
Connectivity
Interface Provided: 1 x 1/2.5/5/10 Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE++
Output Connector Quantity: 1
Power
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Device Features: 15kV ESD protection (Air), 8kV ESD protection (Contact), Overload protection, Short-circuit protection, Wall mountable
Power Output Connectors Details: 1 x RJ-45 90 W
Power Provided: 90 watt
Form Factor (Power Device): External
Surge Suppression: Yes
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: 988,470 Hours
Dimensions and Weight
Height: 1.6 inch
Width: 3.1 inch
Depth: 7.7 inch
Weight: 16.08 ounce
Included Items
Cables: Power cable - detachable
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u
Compliant Standards: Plug and Play
ENERGY STAR Certified: No
Warranty
Service Activation: No
