Product Information

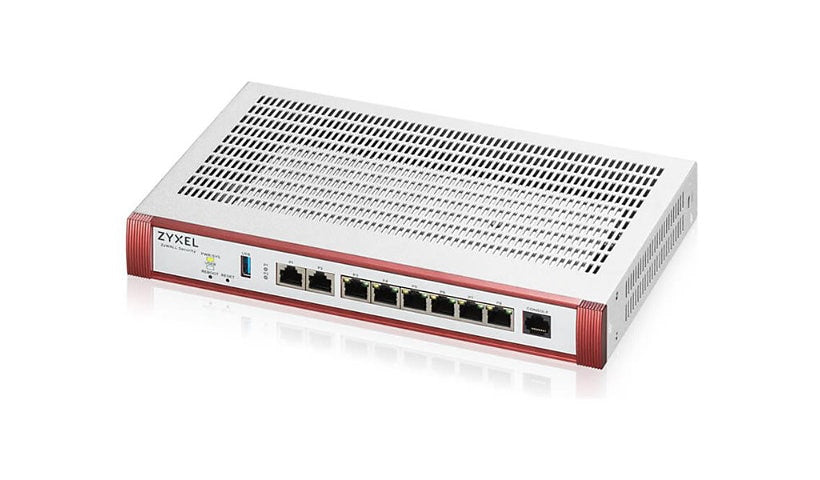

The Zyxel ZyWALL USG FLEX 200H is a cloud managed firewall rated at 5 Gbps SPI firewall, 2 Gbps IPS, 1.5 Gbps anti-malware and UTM, and 1.2 Gbps VPN, with up to 600,000 TCP sessions, 100 IPsec tunnels, 50 SSL VPN users and 32 VLANs. It has two 2.5G RJ-45 ports, six Gigabit RJ-45 ports, a console and USB 3.0, and draws about 22 W. This is the hardware without a license bundle.
Key Features
- 5 Gbps SPI firewall
- 2 Gbps IPS
- 600,000 TCP sessions
- 2 x 2.5G + 6 x 1G RJ-45
- 100 IPsec VPN tunnels
- Cloud managed
Product Information
Brand: ZyXEL
Manufacturer: Zyxel USA
Product Line: Zyxel ZyWALL USG FLEX
Model: 200H
Product Type: Firewall
Packaged Quantity: 1
Color Category: Red, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DDNS, FTP, HTTP, HTTPs, IPSec, POP3, SMTP
Remote Management: DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Authentication Method: X.509 certificates
Encryption: 256-bit AES, 512-bit SHA-2, DES, IKEv2, MD5, SHA-1, SSL, TLS 1.3, Triple DES
Capacity: Concurrent IPSec VPN tunnels: 100, Concurrent logins: 200, Concurrent SSL VPN users: 50, Concurrent TCP sessions: 600000, Gateway to gateway IPSec VPN Tunnels: 50, Virtual interfaces (VLANs): 32
Network Device: Anti-malware throughput: 1.5 Gbps, IPS throughput: 2 Gbps, SPI firewall throughput: 5 Gbps, Unified Threat Management (UTM) throughput: 1.5 Gbps, VPN throughput: 1.2 Gbps
Features: 2-factor authentication, ALG support, Anti-malware protection, Application Patrol, Bridge mode, Content filtering, CTIRU (Counter-Terrorism Internet Referral Unit) support, Dead Peer Detection (DPD), Device insight, DHCP client, DHCP relay, DHCP server, DNS filtering, DoS attack prevention, Dual firmware images, Intrusion Prevention System (IPS), IP address filtering, IPSec NAT-Traversal (NAT-T), NAT support, Perfect Forward Secrecy (PFS), Pre-Shared Key (PSK), Routing, Sandboxing, SecuReporter, SNAT support, Source & Destination Address, SSL inspection, Stateful Packet Inspection (SPI), Syslog support, Traffic monitoring, VPN support, WAN failover, WAN load balancing, Web Filtering
Connectivity
Ports: 8
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 2 x 2.5 GBase-T - RJ-45, 6 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: DC 12 volt
Power Consumption Operational: 22 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Dimensions and Weight
Height: 1.4 inch
Width: 10.7 inch
Depth: 7.4 inch
Weight: 3.35 lbs
Included Items
Cables: 1 x RJ-45 to RS-232 cable
Certifications and Listing
Compliant Standards #2: BSMI, EMC Class B, EN 62368-1, FCC Part 15 Class B, RCM Class B
Compliant Standards: IEEE 802.3at
Compliant Standards: BSMI, EMC Class B, EN 62368-1, FCC Part 15 Class B, RCM Class B
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
