Product Information

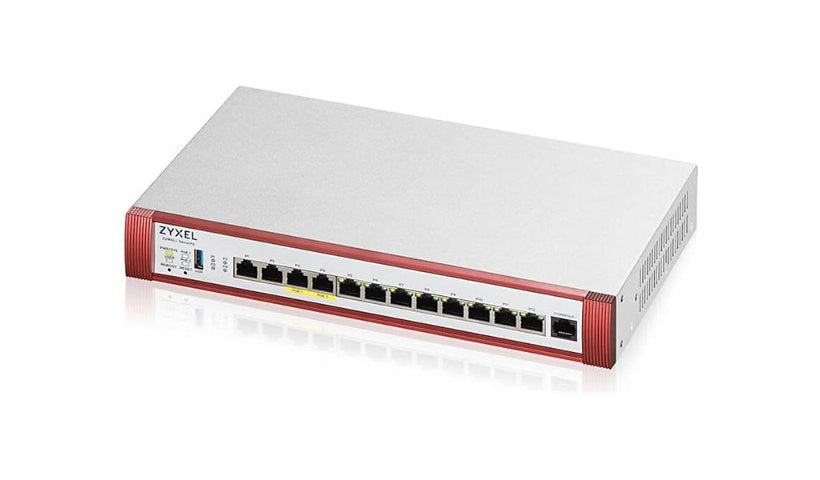

The Zyxel ZyWALL USG FLEX 500H is a cloud managed firewall that comes with a 1 year license bundle. It is rated at 10 Gbps SPI firewall, 3.5 Gbps IPS, 2.5 Gbps anti-malware and UTM, and 2 Gbps VPN, with up to 1 million TCP sessions, 300 IPsec tunnels, 150 SSL VPN users and 64 VLANs. It has two 2.5G PoE+ ports (30 W), two 2.5G RJ-45 ports, eight Gigabit RJ-45 ports, a console and USB 3.0.
Key Features
- 1 year license bundle
- 10 Gbps SPI firewall
- 3.5 Gbps IPS
- 1M TCP sessions
- 2 x 2.5G PoE+ + 2 x 2.5G
- 8 x 1G RJ-45
Product Information
Brand: ZyXEL
Manufacturer: Zyxel USA
Product Line: Zyxel ZyWALL USG FLEX
Model: 500H
Product Type: Firewall
Packaged Quantity: 1
Color Category: Red, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DDNS, FTP, HTTP, HTTPs, IPSec, POP3, SMTP
Remote Management: DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Authentication Method: X.509 certificates
Encryption: 256-bit AES, 512-bit SHA-2, DES, IKEv2, MD5, SHA-1, SSL, TLS 1.3, Triple DES
Capacity: Concurrent IPSec VPN tunnels: 300, Concurrent logins: 300, Concurrent SSL VPN users: 150, Concurrent TCP sessions: 1000000, Gateway to gateway IPSec VPN Tunnels: 150, Virtual interfaces (VLANs): 64
Network Device: Anti-malware throughput: 2.5 Gbps, IPS throughput: 3.5 Gbps, SPI firewall throughput: 10 Gbps, Unified Threat Management (UTM) throughput: 2.5 Gbps, VPN throughput: 2 Gbps
Features: 2-factor authentication, ALG support, Anti-malware protection, CTIRU (Counter-Terrorism Internet Referral Unit) support, Dead Peer Detection (DPD), DHCP client, DHCP relay, DHCP server, DNS filtering, DoS attack prevention, Dual firmware images, Intrusion Prevention System (IPS), IP address filtering, IPSec NAT-Traversal (NAT-T), Perfect Forward Secrecy (PFS), Pre-Shared Key (PSK), Sandboxing, SecuReporter, SNAT support, SSL inspection, Stateful Packet Inspection (SPI), Syslog support, Traffic monitoring, Transparent bridging, URL filtering, VPN support, WAN failover, WAN load balancing, Web Filtering
Bundled Services: 1 year License Bundle
Connectivity
Ports: 12
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 2 x 2.5 GBase-T - RJ-45, 2 x 2.5 GBase-T (PoE+) - RJ-45 - 30 W, 8 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Required Voltage: DC 19 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 11.8 inch
Depth: 7.2 inch
Weight: 3.62 lbs
Included Items
Included Accessories: Power adapter, Power cord, Rack mount kit
Cables: 1 x RJ-45 to RS-232 cable
Certifications and Listing
Compliant Standards #2: BSMI, EMC Class A, EN 62368-1, FCC Part 15 A, RCM Class A
Compliant Standards: IEEE 802.3at
Compliant Standards: BSMI, EMC Class A, EN 62368-1, FCC Part 15 A, RCM Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
