Product Information

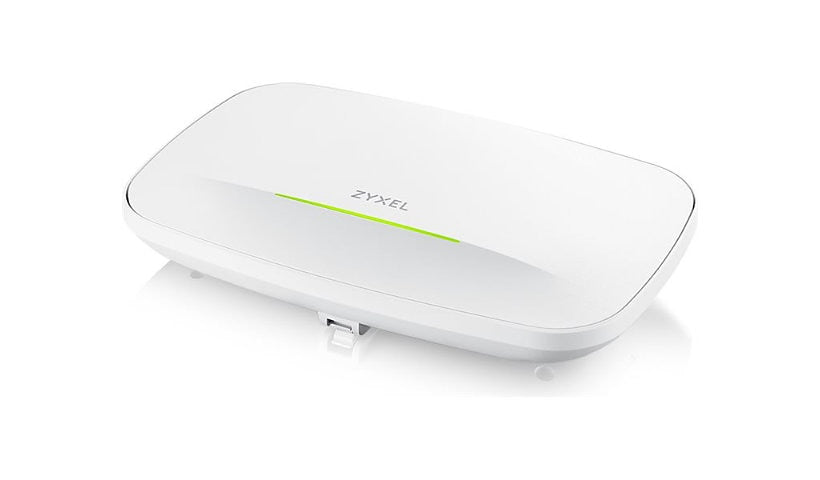

Zyxel's WBE630S is a cloud managed tri-band Wi-Fi 7 access point with 4K QAM and up to 12.3 Gbps, supporting fast roaming, band steering and SNMP. It is PoE powered, draws about 21.5 W and mounts on a wall or ceiling.
Key Features
- Wi-Fi 7 tri-band: 2.4, 5, 6 GHz
- Up to 12.3 Gbps, 4K QAM
- 4x4:4 and 2x2:2 MU-MIMO
- Cloud managed, SNMP
- PoE powered, about 21.5 W
- Wall or ceiling mount
Product Information
Brand: ZyXEL
Manufacturer: Zyxel USA
Product Line: Zyxel
Model: WBE630S
Product Type: Wireless access point
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, SNMP
Network Standard: IPv6
Remote Management: CLI
Authentication Method: RADIUS
Encryption: WEP, WPA, WPA2, WPA3
Data Transfer Rate: 12.3 GBps
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 8646 Mbps, Maximum data rate (6 GHz): 11530 Mbps
Antenna Form Factor: Internal
Wi-Fi Rating: BE12300
Features: 2x2:2 MU-MIMO technology, 4K QAM technology, 4x4:4 MU-MIMO technology, Advanced Cellular Coexistence (ACC), Band steering, Dynamic Channel Selection (DCS), Fast Roaming, Intelligent cloud networking management, L2-isolation, Load balancing, MAC address filtering, NebulaFlex Pro support, Rogue AP detection, Smart antenna, Standalone use, Unscheduled Automatic Power Save Delivery (U-APSD), VLAN support, WDS/Mesh, Wi-Fi Multimedia (WMM) support, ZON Utility
Connectivity
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 21.5 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
MTBF: 691,722 Hours
Physical Characteristics
Form Factor: Wall / ceiling mountable
Dimensions and Weight
Height: 1.9 inch
Width: 9.8 inch
Depth: 6.3 inch
Weight: 28.75 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Wi-Fi CERTIFIED 7
Compliant Standards: BSMI CNS 15598-1, BSMI CNS 15936, EN 301 489-1, EN 301 489-17, EN 301 893, EN 303 687, EN 50385, EN 50665, EN 55032, EN 62368-1, EN IEC 62311, EN55035, EN60601-1-2, ETSI EN 300 328, FCC Part 15 B, FCC Part 15 C, FCC Part 15 E, FCC Part 2, IEC 62368-1, LP0002
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
