Product Information

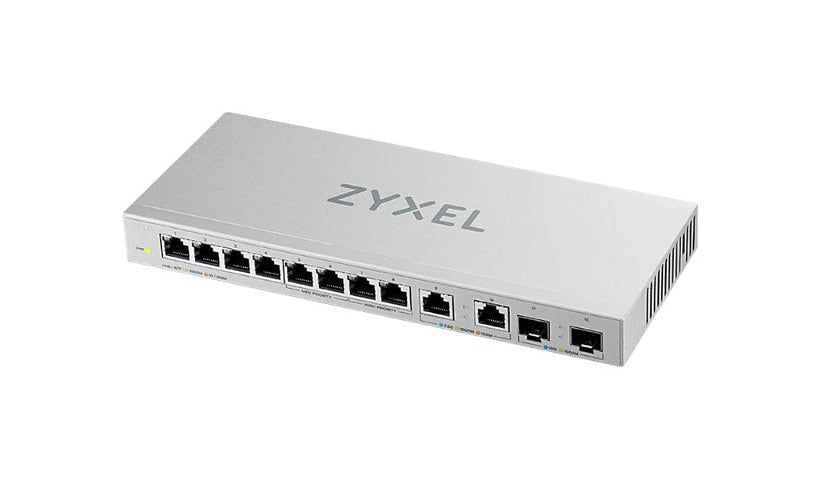

Zyxel's XGS1010-12 mixes eight Gigabit ports, two 2.5G ports and two 10G SFP+ uplinks in a fanless desktop switch with 66 Gbps of capacity. It is plug and play with QoS and IGMP snooping, ideal for Wi-Fi 6 access points and fast NAS.
Key Features
- 8 x Gigabit RJ-45 ports
- 2 x 2.5G RJ-45 ports
- 2 x 1/10G SFP+ uplinks
- 66 Gbps switching capacity
- QoS and IGMP snooping
- Fanless, desktop or wall mount
Product Information
Brand: ZyXEL
Manufacturer: Zyxel USA
Product Line: Zyxel
Model: XGS1010-12
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Switching Type: 2.5 Gigabit Ethernet
Routing Protocol: IGMP, IGMPv2
Performance: Forwarding performance: 49 Mbps, Switching capacity: 66 Gbps
MAC Address Table Size: 16K entries
Jumbo Frame Support: 12KB
Features: 1.5MB packet buffer, Auto-uplink (auto MDI/MDI-X), Fanless, IGMP snooping, Quality of Service (QoS), Reset button, Weighted Round Robin (WRR)
Connectivity
Ports: 12
Port Quantity: 8
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): 100/1000/2.5G
Ports (3rd) Quantity: 2
Interface Provided: 2 x 1/10Gbit LAN SFP+ uplink, 2 x 100/1000/2.5G RJ-45, 8 x 10/100/1000 Base-T RJ-45
QSFP Slots: 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Power Supplies Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 1.1 inch
Width: 9.8 inch
Depth: 4.1 inch
Weight: 27.09 ounce
Certifications and Listing
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Compliant Standards: BSMI, EAC, EMC, FCC, LVD, Plug and Play
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
